Model satellite geometry in 3D

Modified on Thu, 7 Sep, 2023 at 3:46 PM

A full engineering model of the spacecraft is too complicated to use in a simulation of disturbances due to the sheer number of triangles. In SCT, we have tools to create a representative model of a spacecraft using 3D primitives that allows for surface properties to be specified per component. In this video, walk through the BuildAgileSat satellite design script to build a satellite model with solar arrays and various internal components.




Module: SC/CAD

Children: BuildCADModel

Published demo: BuildAgileSat

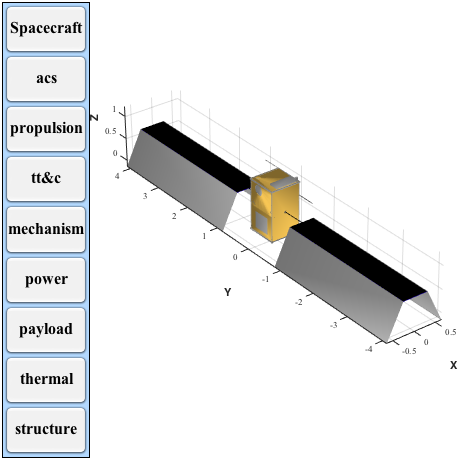

The finished satellite model is shown below. This model also demonstrates how to group components in subsystems, shown in the tabs.
